45KN Max Pull Transmission Line Equipment 4.5T 3000kg Total Weight Oil Cooling System

Name: 45KN Max Pull Transmission Line Equipment 45T 3000kg Total Weight Oil Cooling System
Brand: GALAXY
Price: 1 USD

China 45KN Max Pull Transmission Line Equipment 4.5T 3000kg Total Weight Oil Cooling System wholesale

Brand Name : GALAXY

Model Number : GX45TP

Certification : ISO,CE

Place of Origin : CHINA

MOQ : 1 set

Price : negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000 sets per month

Delivery Time : 30 days

Packaging Details : bulk

Trial traverse diameter : 34mm

Total weight : 3000kg

Boundary dimension : 4000×2000×2300mm

Maximum intermittent tension : 45KN

Maximum pull : 45KN

Correspending speed : 5km/h

Contact Now

Transmission Line Equipment Hydraulic Puller-Tensioner Equipment 4.5T with Cummins Engine

Structure Parameter

Bottom diameter of tension wheel groove	1500mm
Trial traverse diameter	34mm
Total weight	3000kg
Boundary dimension	4000×2000×2300mm

Performance Parameter

Maximum intermittent tension	45KN
Maximum pull	45KN
Maximum sustained pull	25KN
Correspending speed	5km/h

Main Configuration Instructions

Engine	Cummins
Reduction gear	German Rexroth
Hydraulic motor	German Rexroth
Pressure gage	German
Pressure pump	German Rexroth

Engine

Feeding	diesel
Cooling system	water
Electric system	24V

Product Introduction

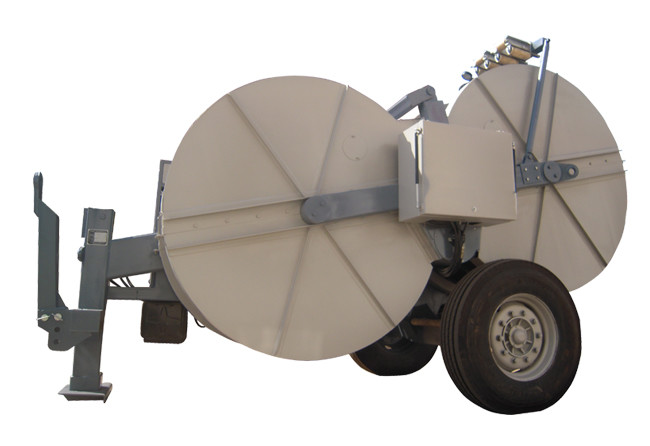

Hydraulic puller-tensioner GX45TP designed to operate either as a tensioner and a puller, fit to string one or two ropes or conductors.

One hydraulic circuit lets to tension at constant force even varying the speed of stringing.

pairs of steel capstans lined with multi-grooved nylon sectors.
Device to control low-force tensioons(2-20KN), fit for OPGW cables.
Chassis with rigid axle, manual brake and detachable drawbar for towing at low speed in workplace.
Stabilisers, share and attachments for anchoring the machine.
Oil cooling system.
Two auxiliary hydraulic circuits for additional equipment.
Grounding connection point.
